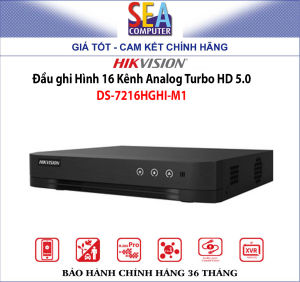

Đầu ghi HIKVISION 16 Kênh Analog Turbo HD 5.0 - DS-7216HGHI-M1

Đầu ghi HIKVISION 16 Kênh Analog Turbo HD 5.0 - DS-7216HGHI-M1 16-ch 1080p Lite 1U H.265 DVR - Deep learning based human and vehicle targets classification of Motion Detection 2.0 - H.265 Pro+/H.265 Pro/H.265 video compression - HDTVI/AHD/CVI/CVBS/IP video input - Audio via coaxial cable - Up to 18-ch IP camera inputs (up to 5 MP) - Up to 1080p Lite@15 fps encoding capability - Max. 1200 m for 720p HDTVI signal==============THÔNG SỐ KỸ THUẬTMotion Detection 2.0Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported;RecordingVideo CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264Encoding ResolutionFor 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIFFor 720p stream access: 720p/WD1/4CIF/VGA/CIFFor standard definition stream access: WD1/4CIF/VGA/CIFFrame RateMain stream:For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fpsFor 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fpsFor SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)Sub-stream:For 1080p and 720p stream access CIF/QVGA@15 fpsFor SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)Video Bitrate32 Kbps to 4 MbpsDual-streamSupportStream TypeVideo, Video & AudioAudio CompressionG.711uAudio Bitrate64 KbpsVideo and AudioIP Video Input2-ch (up to 18-ch)Up to 5 MP resolutionSupport H.265+/H.265/H.264+/H.264 IP camerasAnalog Video Input16-chBNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connectionHDTVI Input1080p25, 1080p30, 720p25, 720p30AHD Input1080p25, 1080p30, 720p25, 720p30HDCVI Input1080p25, 1080p30, 720p25, 720p30CVBS InputPAL/NTSCHDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60HzVGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60HzVideo Output ModeHDMI/VGA simultaneous outputAudio Input1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cableAudio Output1-ch, RCA (Linear, 1 KΩ)Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)Synchronous Playback16-chNetworkTotal Bandwidth96 MbpsNetwork ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS, ONVIFRemote Connection128Network Interface1, RJ45 10M/100M self-adaptive Ethernet interfaceAuxiliary InterfaceSATA1, SATA interfaceCapacityUp to 10 TB capacity for each diskUSB Interface2 × USB 2.0GeneralPower Supply12 VDC, 1.6 AConsumption≤ 10 W (without HDD)Working Temperature-10 °C to 55 °C (14 °F to 131 °F)Working Humidity10% to 90%Dimension (W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) Weight≤ 1.1 kg (without HDD, 2.4 lb.)
