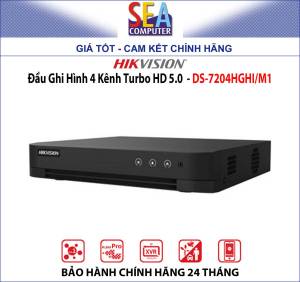

Đầu Ghi Hình HIKVISION 4 Kênh Turbo HD 5.0 - DS-7204HGHI/M1

– Đầu ghi hình 4 kênh Turbo HD 5.0 DVR (vỏ sắt) – Hỗ trợ chuẩn nén H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 – Độ phân giải ghi hình tối đa 1080p Lite/720p – Hỗ trợ phân biệt người và phương tiện. Hỗ trợ phân biệt người và phương tiện. – Hỗ trợ 4 ngõ vào video, 1 cổng audio input, – Hỗ trợ camera HD TVI, HD CVI, AHD, Analog – Hỗ trợ gán thêm 1 camera IP 2MP (tối đa 5 camera IP) – Hỗ trợ truyền âm thanh qua cáp đồng trục – Hỗ trợ 01 cổng SATA hỗ trợ ổ cứng tối đa 4TBTHÔNG SỐ KỸ THUẬTMotion Detection 2.0Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported;Video and AudioIP Video Input1-ch (up to 5-ch) Up to 1080p resolutionSupport H.265+/H.265/H.264+/H.264 IP camerasAnalog Video Input4-chBNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connectionHDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60HzVGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60HzCVBS InputSupportHDTVI Input1080p25, 1080p30, 720p25, 720p30Synchronous playback4-chAHD Input1080p25, 1080p30, 720p25, 720p30HDCVI Input1080p25, 1080p30, 720p25, 720p30Video Output ModeHDMI/VGA simultaneous outputAudio Output1-ch, RCA (Linear, 1 KΩ)Audio Input1-ch RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cableTwo-Way AudioReuse the first audio inputRecordingVideo CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264Encoding ResolutionFor 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIFFor 720p stream access: 720p/WD1/4CIF/VGA/CIFFor SD stream access: WD1/4CIF/VGA/CIFFrame RateMain stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)Sub-stream: 4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)Video Bitrate32 Kbps to 4 MbpsStream TypeVideo, Video & AudioAudio CompressionG.711uAudio Bitrate64 KbpsNetworkTotal Bandwidth64 MbpsNetwork ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP, HTTPSRemote Connection32Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interfaceAuxiliary InterfaceSATA1 SATA interfaceCapacityUp to 4 TB capacity for each diskUSB InterfaceRear panel: 2 × USB 2.0Alarm In/OutN/AGeneralPower Supply12 VDC, 1.5 AConsumption≤ 16 W (without HDD)Working Temperature-10 °C to 55 °C (14 °F to +31 °F)Working Humidity10% to 90%Dimension (W × D × H) 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)Weight≤ 0.8 kg (without HDD, 1.8 lb.)
