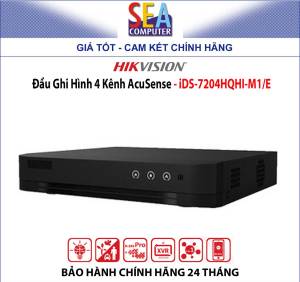

Đầu Ghi Hình HIKVISION 4 Kênh AcuSense - iDS-7204HQHI-M1/E

– Đầu ghi hình 4 kênh – Chuẩn nén H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 – Hỗ trợ camera HD TVI, AHD, CVI, CVBS, IP – Gán tối đa 6 camera IP khi tắt tất cả các kênh analog. – Hỗ trợ truyền âm thanh qua cáp đồng trục – Hỗ trợ đàm thoại 2 chiều qua kênh 1 khi sử dụng loa và mic rời cắm vào đầu ghi. – Hỗ trợ 01 x SATA tối đa 10TBTHÔNG SỐ KỸ THUẬTMotion Detection 2.0Human/Vehicle AnalysisDeep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;Quick search by object or event type is supported;Perimeter ProtectionHuman/Vehicle AnalysisUp to 2-chFacial DetectionFacial Detection and CaptureFace picture detection, face picture searchVideo and AudioIP Video Input1-ch (up to 5-ch) Enhanced IP mode on: 2-ch (up to 6-ch), each up to 4 MbpsUp to 6 MP resolutionSupport H.265+/H.265/H.264+/H.264 IP camerasAnalog Video Input4-chBNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connectionHDTVI Input3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fpsAHD Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fpsHDCVI Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fpsCVBS InputSupportHDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60HzVGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60HzVideo Output ModeHDMI/VGA simultaneous outputAudio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)4-ch via coaxial cableAudio Output1-ch, RCA (Linear, 1 KΩ)Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)Synchronous Playback4-chRecordingVideo CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264Encoding ResolutionWhen 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIFFrame RateMain stream:When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fpsFor 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fpsFor 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)When 1080p Lite mode enabled: 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)Sub-stream:WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)Video Bitrate32 Kbps to 6 MbpsDual-streamSupportStream TypeVideo, Video & AudioAudio CompressionG.711uAudio Bitrate64 KbpsNetworkTotal Bandwidth72 MbpsRemote Connection32Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIFNetwork Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interfaceWi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interfaceAuxiliary InterfaceSATA1 SATA interfaceCapacityUp to 10 TB capacity for each diskAlarm In/OutN/AUSB InterfaceReal panel: 2 × USB 2.0GeneralPower Supply12 VDC, 1.5 AConsumption≤ 8 W (without HDD)Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)Working Humidity10% to 90%Dimension (W × D × H)263 × 227 × 48 mm (10.4 × 8.9 × 1.9 inch)Weight≤ 1 kg (without HDD, 2.2 lb.)
