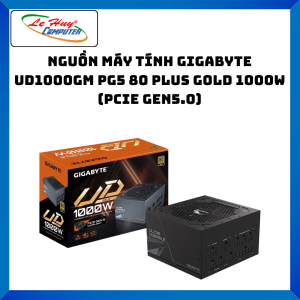

Nguồn Gigabyte UD850GM PG5 - ATX 3.0 PCIe 5.0 / UD1000GM PG5 80 Plus Gold 1000w/ UD1000GM PG5 ICE 1000W - Hàng Chính Hãng

ModelGP-UD1000GM PG5 ICETypeIntel Form Factor ATX 12V v3.1PFCActive PFC (>0.9 typical)Input Voltage100–240 Vac (full range)Input Current15–6.5AInput Frequency60–50 HzOutput Capacity1000WDimension150 x 140 x 86 mmFan Type120mm Hydraulic Bearing (HYB) Fan80 PLUSGoldEfficiency90% at typical loadMTBF>100,000 hoursProtectionOVP / OPP / SCP / UVP / OCP / OTPPower Good Signal100–150msHold Up Time>16msCable TypeEmbossed, All whiteConnectorsATX/MB 20+4 Pin x 1 : 610mm1CPU/EPS 4+4 Pin x 2 : 650mm+200mm1PCI-e 6+2 Pin x 4 : 600mm+150mm2PCI-e 12+4 Pin x 1:700mm1SATA x 8 : 600mm+150mm+150mm+150mm24 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm1Thương hiệu: GigabyteMã sản phẩm: GP-UD850GM PG5Công suất: 850WHiệu suất: 90%Kiểu nguồn: Intel Form Factor ATX 12V80 PLUS: Gold Full ModularCáp kết nối: ATX/MB 20+4 Pin x 1, CPU/EPS 4+4 Pin x 2, PCI-e 12+4 Pin x 1, PCI-e 6+2 Pin x 4, SATA x 8, 4 Pin Peripheral x 3+4-Pin Floppy x 1.Hỗ Trợ PCIe Gen 5.0 Graphics CarCáp 16-pin Chất Lượng Cao Hỗ Trợ 600WTên gọiGP-UD1000GM PG5Thiết kế  Form FactorIntel Form Factor ATX 12VInput Voltage100-240 Vac (full range)Input Current15-6.5AInput Frequency60-50 HzOutput Capacity1000WKích thước150 x 140 x 86 mmTản nhiệt120mm Hydraulic Bearing(HYB)fanTiêu chuẩn80 Plus GoldHiệu suất chuyển đổi tối ưu90%Độ bền>100,000 hoursCáp kết nốiThẳng, màu đenGiữ thời gian> 16msChuẩn kết nốiATX / MB 20 + 4 Pin x 1: 610mm * 1CPU / EPS 4 + 4 Pin x 2: 600mm + 200mm * 1PCI-e 16 Pin x 1: 700mm * 1PCI-e 6 + 2 Pin x 4: 600mm + 150mm * 2SATA x 8:600mm + 150mm + 150mm + 150mm * 24 Pin Ngoại vi x Đĩa mềm 3 + 4 Pin x 1: 500mm + 120mm + 120mm + 150mm * 1
