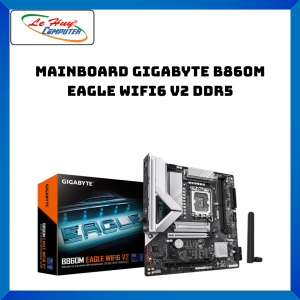

Mainboard Gigabyte B860M EAGLE WIFI6 V2 DDR5 - Hàng Chính Hãng

Sản phẩmBo mạch chủTên HãngMainboard GigabyteCPU hỗ trợLGA1851 socket: Support for Intel ® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPUChipsetIntel ® B860 Express ChipsetRAM hỗ trợSupport for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architectureKhe cắm mở rộngCPU:

• 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)Ổ cứng hỗ trợCPU:
• 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset:
• 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)
• 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devicesETHERNETRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Realtek® Wi-Fi 6 RTL8851BE
• WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
• BLUETOOTH 5.3
• Support for 11ax 80MHz wireless standard (Actual data rate may vary depending on environment and equipment.)USBChipset:
• 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
• 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
• 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub:
• 4 x USB 2.0/1.1 ports available through the internal USB headersCổng kết nối (Internal)1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumperCổng kết nối (Back Panel)1 x PS/2 keyboard/mouse port 1 x HDMI port* 1 x DisplayPort* 3 x USB 3.2 Gen 1 ports 3 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacksKích cỡMicro ATX Form Factor; 24.4cm x 22.5cm
