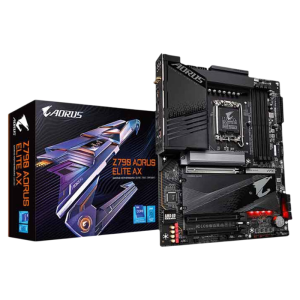

Mainboard Gigabyte Z790 AORUS ELITE AX​ DDR5- Hàng Chính Hãng

Sản phẩmBo mạch chủTên HãngGigabyteModelZ790 AORUS ELITE AX CPU hỗ trợIntelChipsetZ790 RAM hỗ trợSupport for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules4 x DDR DIMM sockets supporting up to 192 GB (32 GB single DIMM capacity) Khe cắm mở rộngCPU:1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)Chipset:2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)Ổ cứng hỗ trợCPU:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)6 x SATA 6Gb/s connectorsCổng kết nối (Internal)1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x water cooling CPU fan header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers4 x M.2 Socket 3 connectors6 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt™ add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x reset button1 x Q-Flash Plus button1 x Clear CMOS button1 x reset jumper1 x Clear CMOS jumperCổng kết nối (Back Panel)1 x USB Type-C® port, with USB 3.2 Gen 2x2 support2 x USB 3.2 Gen 2 Type-A ports (red)3 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports2 x SMA antenna connectors (2T2R)1 x HDMI 2.0 port1 x DisplayPort1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacksLAN / WirelessRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Intel® Wi-Fi 6E AX211WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bandsBLUETOOTH 5.3Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rateKích cỡATX Form Factor; 30.5cm x 24.4cm
