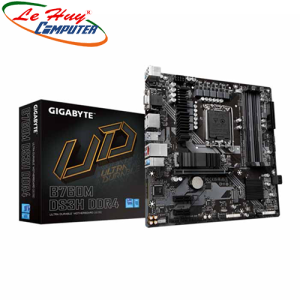

Mainboard Gigabyte B760M DS3H DDR4

Sản phẩmBo mạch chủTên HãngGigabyte ModelB760M DS3H DDR4CPU hỗ trợIntelChipsetB760RAM hỗ trợSupport for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memoryKhe cắm mở rộngCPU:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16Chipset:2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1Ổ cứng hỗ trợCPU:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devicesCổng kết nối (Internal)1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header3 x system fan headers1 x addressable LED strip header1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)1 x serial port header1 x parallel port header1 x S/PDIF Out header1 x Q-Flash Plus button1 x reset button1 x reset jumper1 x Clear CMOS jumperCổng kết nối (Back Panel)2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port1 x D-Sub port1 x HDMI port2 x DisplayPorts3 x USB 3.2 Gen 1 ports1 x USB Type-C® port, with USB 3.2 Gen 2 support1 x RJ-45 port3 x audio jacksLAN / WirelessRealtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)Kích cỡMicro ATX Form Factor; 24.4cm x 24.4cm
