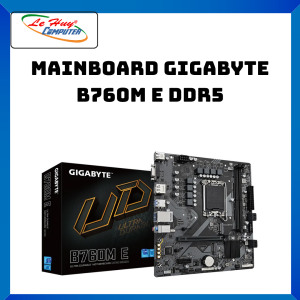

Mainboard Gigabyte B760M E DDR5 - Hàng Chính Hãng

Sản phẩmBo mạch chủTên HãngGigabyte CPU hỗ trợIntelChipsetIntel ® B760 Express ChipsetRAM hỗ trợSupport for DDR5 7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modulesKhe cắm mở rộngCPU:

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16* The PCIEX16 slot can only support a graphics card or an NVMe SSD.Chipset:
• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1Ổ cứng hỗ trợCPU:
• 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU) Chipset:
• 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)
• 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devicesCổng kết nối (Internal)1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumperCổng kết nối (Back Panel)2 x USB 2.0/1.1 ports 1 x D-Sub port 1 x DisplayPort 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacksUSBChipset:
• 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)LAN / WirelessRealtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)Kích cỡMicro ATX Form Factor; 23.0cm x 21.5cm
